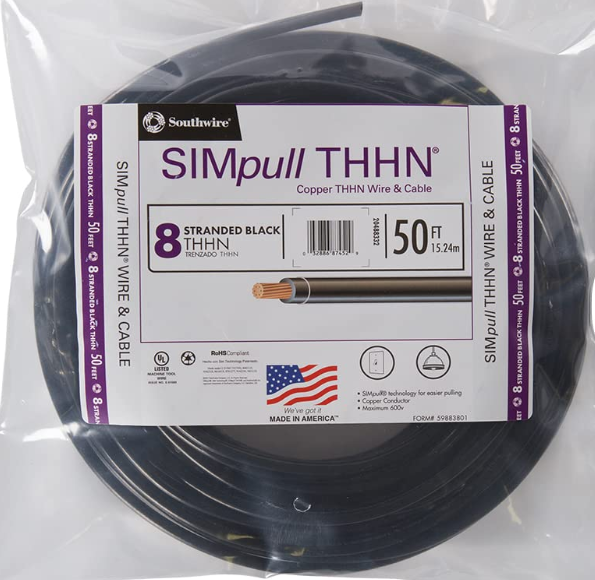

Southwire 8-19 Stranded CU SIMpull THHN-THWN-2 MTW-AWM
Description
Better Prices Than Big Box Stores
Call For Prices
600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Sun, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW and AWM. SIMpull® Technology for Easier Pulling.
SIZE (AWG OR KCMIL) 8 AWG
NO. OF CONDUCTORS 1
NO. OF STRANDS 19
NOM. OD (MILS) 219 mils
INSULATION THICKNESS (MILS) 30 mils
JACKET THICKNESS (MILS) 7 mils
NOMINAL TOTAL WEIGHT (LBS/1000′) 64 lbs/1000′
ALLOWABLE AMPACITY AT 60C 40
ALLOWABLE AMPACITY AT 75C 50
ALLOWABLE AMPACITY AT 90C 55
