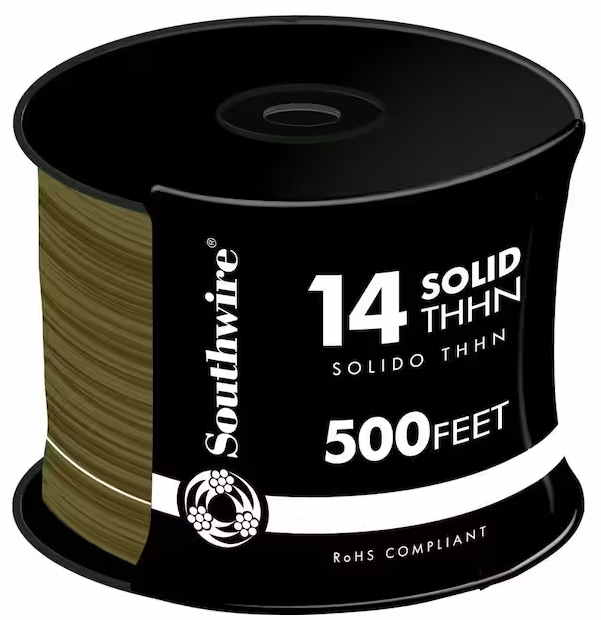

Southwire 14 AWG SOLID SD CU THHN-THWN-AWM
Description
We Will Cut Any Length of Wire You Need
Application
THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.
Southwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding . The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
Specifications
STOCK # 11579001
SIZE (AWG OR KCMIL) 14 AWG
NO. OF CONDUCTORS 1
NO. OF STRANDS 1
NOM. OD (MILS) 106 mils
INSULATION THICKNESS (MILS) 15 mils
JACKET THICKNESS (MILS) 5 mils
NOMINAL TOTAL WEIGHT (LBS/1000′) 16 lbs/1000′
ALLOWABLE AMPACITY AT 60C 15
ALLOWABLE AMPACITY AT 75C 15
ALLOWABLE AMPACITY AT 90C 15
UPC # 032886223006
