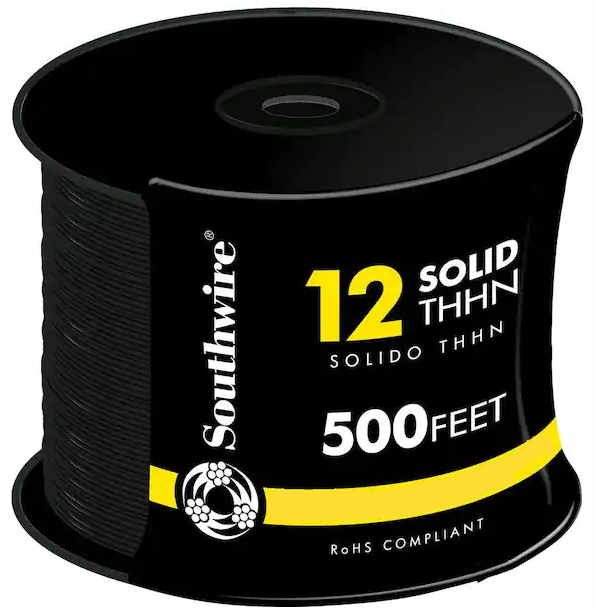

Southwire 12 SOL SD CU THHN-THWN-AWM

Description

Better Prices Than Big Box Stores

Will Cut to Any Length You Need

Call For Pricing

THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
SIZE (AWG OR KCMIL) 12 AWG
NO. OF CONDUCTORS 1
NO. OF STRANDS 1
NOM. OD (MILS) 122 mils
INSULATION THICKNESS (MILS) 15 mils
JACKET THICKNESS (MILS) 5 mils
NOMINAL TOTAL WEIGHT (LBS/1000′) 23 lbs/1000′
ALLOWABLE AMPACITY AT 60C 20
ALLOWABLE AMPACITY AT 75C 20
ALLOWABLE AMPACITY AT 90C 20

Available Colors:
