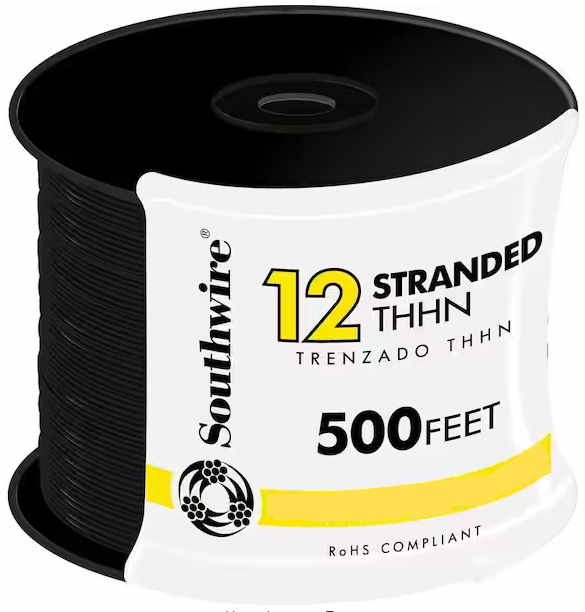

Southwire 12-19 SD CU THHN-THWN-MTW-AWM
Description
Better Prices Than Big Box Stores
Custom Length Cuts Available
Call For Pricing
600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM. THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.
SIZE (AWG OR KCMIL) 12 AWG
NO. OF CONDUCTORS 1
NO. OF STRANDS 19
NOM. OD (MILS) 132 mils
INSULATION THICKNESS (MILS) 15 mils
JACKET THICKNESS (MILS) 5 mils
NOMINAL TOTAL WEIGHT (LBS/1000′) 25 lbs/1000′
ALLOWABLE AMPACITY AT 60C 20
ALLOWABLE AMPACITY AT 75C 20
ALLOWABLE AMPACITY AT 90C 20
