Southwire 14-19 SD CU THHN-THWN-MTW-AWM
Description
Better Prices Than Big Box Stores
We Can Cut Any Length Wire That You Need
600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM.
Specifications
SIZE (AWG OR KCMIL) 14 AWG
NO. OF CONDUCTORS 1
NO. OF STRANDS 19
NOM. OD (MILS) 113 mils
INSULATION THICKNESS (MILS) 15 mils
JACKET THICKNESS (MILS) 5 mils
NOMINAL TOTAL WEIGHT (LBS/1000′) 16 lbs/1000′
ALLOWABLE AMPACITY AT 60C 15
ALLOWABLE AMPACITY AT 75C 15
ALLOWABLE AMPACITY AT 90C 15

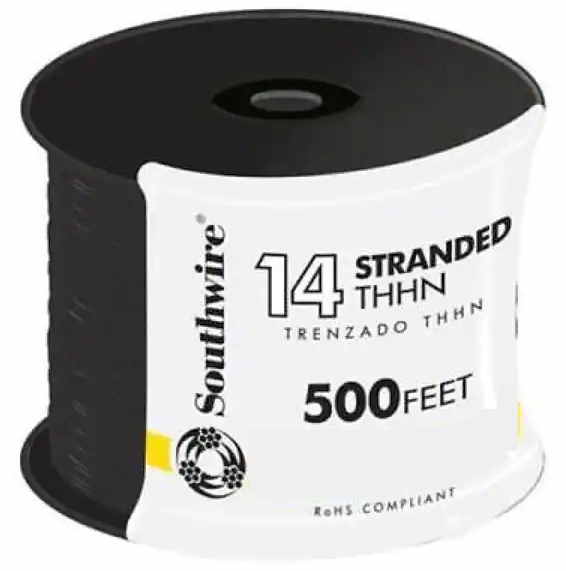

Southwire 14 Stranded Wire
