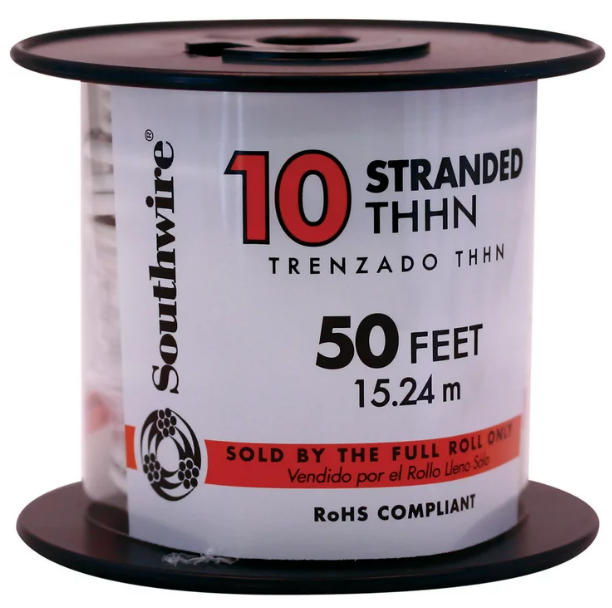

10-19 SD CU THHN-THWN-MTW-AWM
Description
THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.
THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
SIZE (AWG OR KCMIL) 10 AWG
NO. OF CONDUCTORS 1
NO. OF STRANDS 19
NOM. OD (MILS) 165 mils
INSULATION THICKNESS (MILS) 20 mils
JACKET THICKNESS (MILS) 5 mils
NOMINAL TOTAL WEIGHT (LBS/1000′) 39 lbs/1000′
ALLOWABLE AMPACITY AT 60C 30
ALLOWABLE AMPACITY AT 75C 30
ALLOWABLE AMPACITY AT 90C 30
